Excavators are the backbone of construction, mining, and earthmoving operations worldwide. While operators focus on hydraulic systems and buckets, one critical component often goes unnoticed until problems arise: the final drive. This essential part determines whether your excavator moves smoothly or grinds to a halt.
Understanding your excavator's final drive system can save you thousands in repair costs and prevent costly downtime. Whether you're a seasoned operator, fleet manager, or maintenance professional, this comprehensive guide covers everything you need to know about final drives, their components, and how to keep them running efficiently.

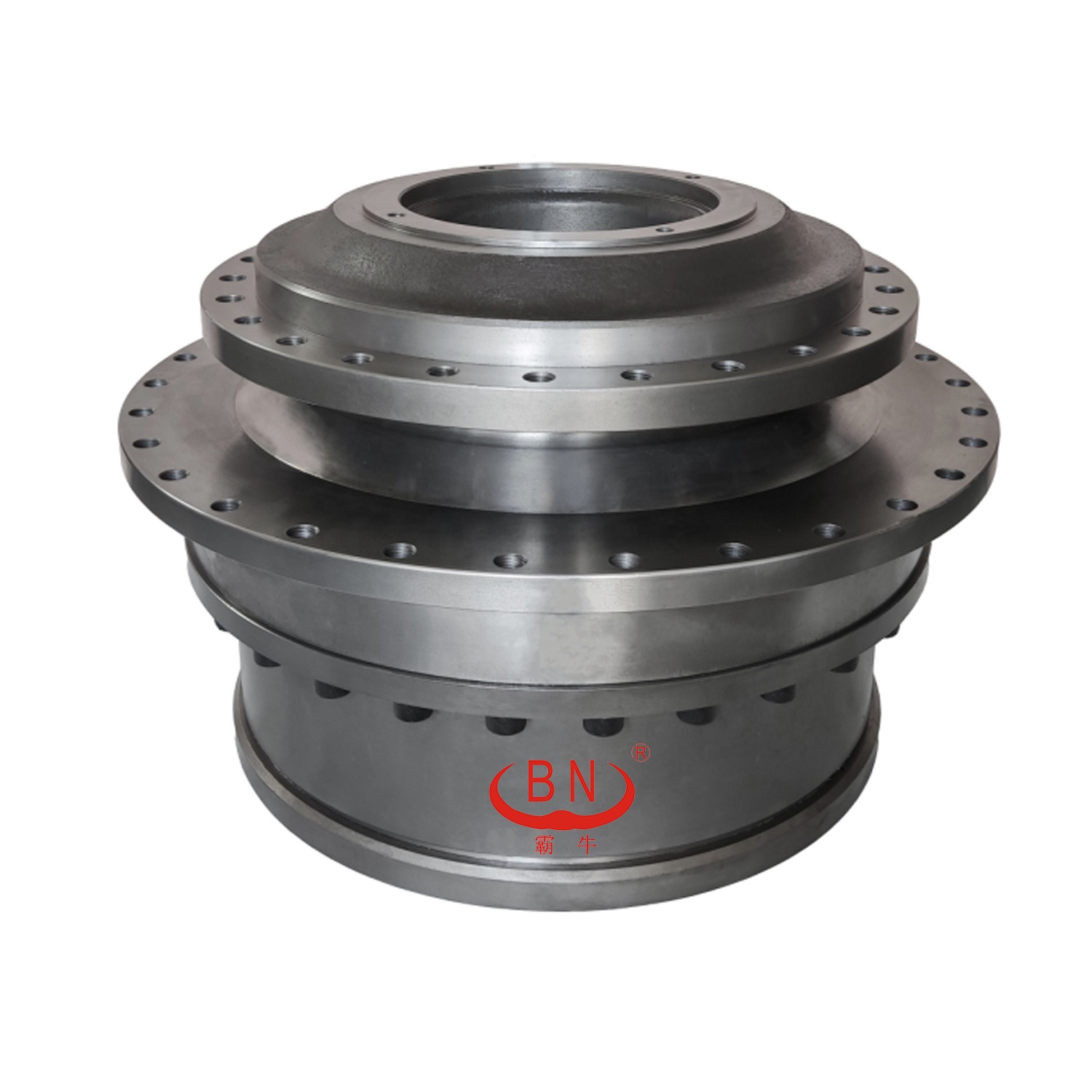

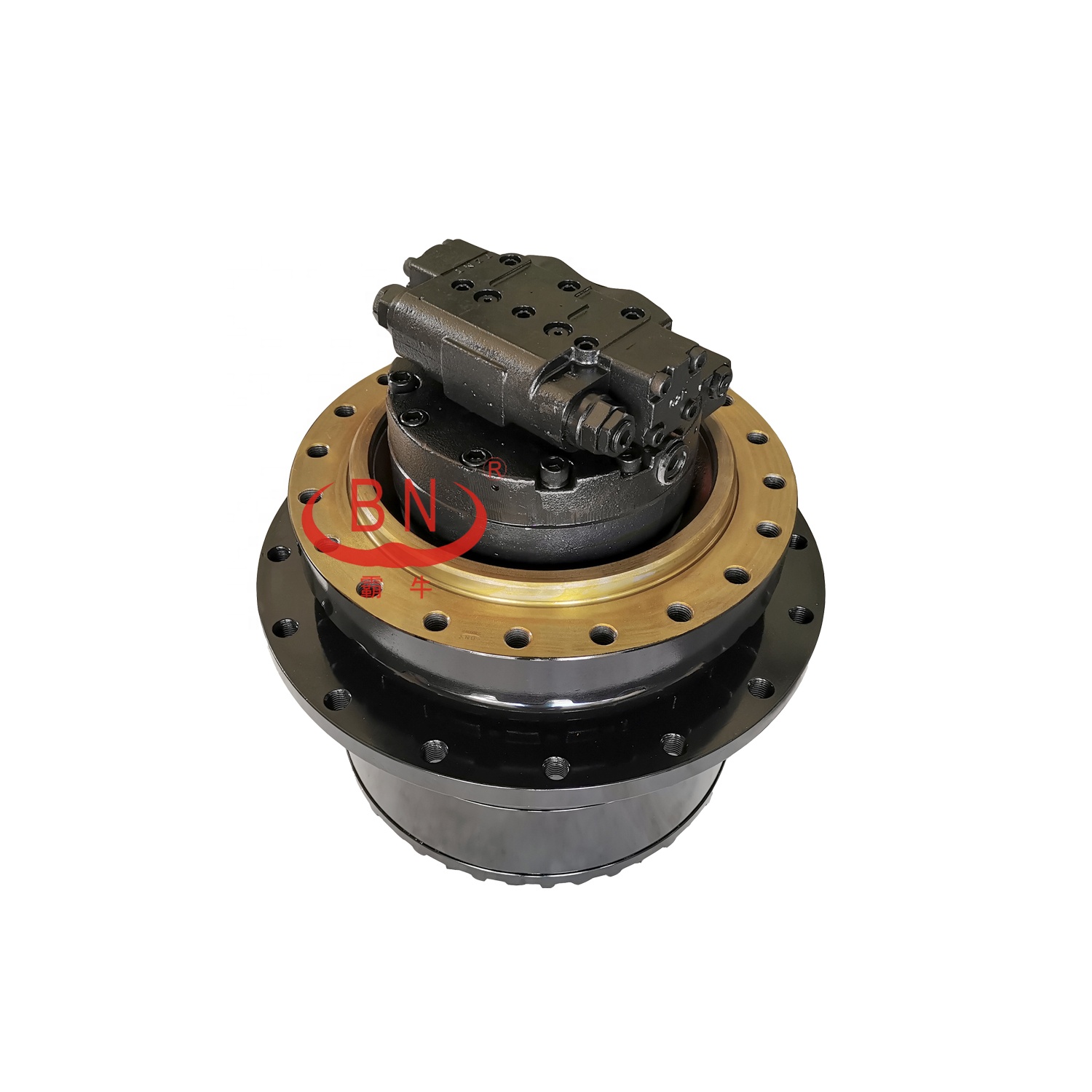

A final drive is the last component in your excavator's power transmission system that converts hydraulic energy into mechanical rotation to move the tracks. Think of it as the bridge between your machine's hydraulic motor and the sprocket that drives your tracks. The final drive assembly sits inside each track frame and consists of several key components working together. When hydraulic fluid flows from the main system to the travel motor, it creates rotational force. This force passes through the final drive's internal gearing system, which reduces speed while multiplying torque to provide the power needed to move your heavy machine.
Without a properly functioning final drive, your excavator becomes an expensive paperweight. The system must handle enormous loads while maintaining precise control for delicate operations. Modern final drives are engineered to withstand years of abuse in harsh conditions, but they require proper maintenance to achieve their design life.
Understanding excavator final drive parts helps you recognize problems early and communicate effectively with service technicians. Each component plays a specific role in transferring power to your tracks.
The travel motor converts hydraulic pressure into rotational motion. High-pressure hydraulic fluid enters the motor housing, pushing against pistons or gears to create rotation. This motor must generate enough torque to move machines weighing 20 tons or more while maintaining smooth operation at various speeds.
Quality travel motors feature precision-machined components and robust sealing systems to prevent contamination. Signs of motor problems include jerky movement, reduced speed, or unusual noises during operation.
The planetary gear system is the heart of torque multiplication in your final drive. This ingenious design uses multiple gears arranged around a central sun gear to reduce speed and increase torque output. Most excavator final drives use two or three planetary stages to achieve the proper gear reduction ratio.
Each planetary stage typically reduces speed by a factor of 3:1 to 5:1, resulting in overall reductions of 10:1 to 50:1 depending on machine size and application. The compact design fits within tight space constraints while handling massive loads.
The output sprocket connects your final drive to the track chain. This heavily built component must transfer all the power from your final drive to move your machine. Sprockets experience significant wear from constant contact with track chains and exposure to abrasive materials.
Modern sprockets use hardened steel construction with precisely machined teeth to maximize chain engagement and minimize wear. Regular inspection of sprocket condition prevents chain derailment and premature track wear.
Component | Typical Range | Function |
|---|---|---|
Gear Reduction Ratio | 10:1 to 50:1 | Speed reduction, torque multiplication |
Operating Pressure | 250-350 bar | Hydraulic system pressure |
Output Torque | 5,000-50,000 Nm | Driving force to tracks |
Maximum Speed | 3-8 km/h | Travel speed capability |
Weight | 150-800 kg | Component mass |
Final drive issues can shut down operations quickly, but many problems give warning signs before complete failure. Recognizing these symptoms allows you to schedule maintenance during planned downtime rather than facing emergency repairs.
Contaminated hydraulic fluid is the leading cause of final drive failure. Water, dirt, and metal particles in your hydraulic system accelerate wear and damage precision components. Regular fluid analysis and filter changes prevent most contamination-related problems.
Signs of contamination include discolored fluid, unusual noises, and erratic movement. Addressing contamination early saves expensive component replacement costs.
Seals prevent hydraulic fluid from leaking while keeping contaminants out of your final drive. Extreme temperatures, age, and improper fluid cause seal deterioration. External leaks are obvious, but internal seal failures allow different fluid chambers to mix, reducing performance.
Replace seals at manufacturer-recommended intervals, even if no visible leakage exists. Preventive seal replacement costs far less than repairing damage from catastrophic failure.
Heavy loads and continuous operation stress final drive bearings beyond their design limits when maintenance is neglected. Worn bearings create excessive play in the drive system, leading to gear damage and eventual failure.
Regular greasing and proper fluid levels extend bearing life significantly. Listen for grinding or rumbling noises that indicate bearing problems before they cause secondary damage.
Proper maintenance extends final drive life and prevents costly failures. Following manufacturer recommendations and monitoring key indicators keeps your equipment running productively.
Check hydraulic fluid levels daily and inspect for external leaks. Clean fluid at proper levels ensures adequate lubrication and heat dissipation. Low fluid levels cause immediate damage to expensive components.
Monitor operating temperature during heavy work. Excessive heat breaks down hydraulic fluid and damages seals. Install temperature gauges if your machine lacks this capability. Grease final drive bearings according to manufacturer schedules. Over-greasing causes seal damage, while under-greasing leads to bearing failure. Use only recommended grease types and quantities.
Choosing the right final drive system affects your excavator's performance, reliability, and operating costs. Several factors influence the best choice for your specific application.
Machine weight and intended use determine required torque output and gear reduction ratios. Lighter machines need less torque multiplication, while heavy excavators require high-ratio drives for adequate performance.
Operating environment affects component selection and maintenance requirements. Dusty conditions require enhanced sealing, while extreme temperatures need special fluid specifications.
Duty cycle impacts component sizing and expected service life. Continuous operation demands heavy-duty components, while intermittent use allows standard specifications.
Applicable to equipment from the following brands: SANY, ZOOMLION, LIUGONG, YANMAR, KUBOTA, and BAUER. These brands are widely used in various work scenarios, each with specific focuses on the selection and performance of core components. Whether it’s a highly efficient hydraulic drive system or reliability under extreme conditions, these machines showcase exceptional quality and robust operational capabilities, meeting the diverse needs of users.
Most manufacturers recommend changing final drive fluid every 1,000-2,000 operating hours, depending on conditions. Severe duty applications may require more frequent changes.
The most common causes are contaminated hydraulic fluid, improper fluid levels, overheating, and lack of regular maintenance. Addressing these issues prevents most failures.
Yes, most final drives can be professionally rebuilt when components show wear. Rebuilding costs 50-70% less than new replacement while providing similar reliability.
Warning signs include unusual noises, reduced travel speed, jerky movement, external leaks, and excessive operating temperature. Address symptoms immediately to prevent major damage.
With proper maintenance, final drives typically last 8,000-15,000 hours. Severe applications may reduce this, while light duty can extend service life significantly.
When it comes to reliable excavator final drive solutions, BN Gears stands out as the industry leader. Our commitment to quality engineering and customer satisfaction has made us the preferred choice for operators worldwide.
BN Gears offers complete final drive assemblies, individual components, and professional rebuild services. Our experienced engineers understand the demanding requirements of modern excavators and design products that exceed original equipment specifications.
Every BN Gears final drive undergoes rigorous testing before shipment to ensure reliable performance in the field. We back our products with comprehensive warranties and responsive technical support.
Contact our team today to discuss your final drive requirements. Our experts can recommend the optimal solution for your specific application and operating conditions.
