The world of heavy machinery is a fascinating one, and understanding how it works can significantly improve productivity, efficiency, and maintenance practices. One critical component in any heavy machine, like an excavator, is the final drive. It plays a vital role in the movement and function of these incredible machines. This article will explore what a final drive is, its location on an excavator, the concept of the final drive ratio, and more. We'll break everything down into easy-to-understand sections, ensuring you're well-equipped with knowledge about final drives by the end.

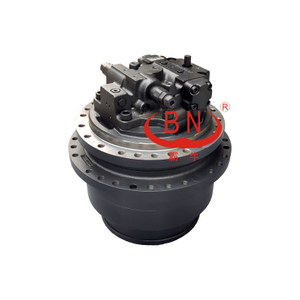

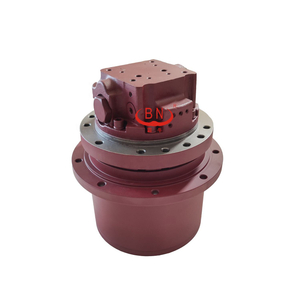

A final drive is an essential part of heavy machinery, including excavators, bulldozers, and tractors. It’s the component responsible for transferring the required power from the hydraulic motor to the track or wheels of the machine. Simply put, the final drive determines how effectively an excavator can move and function. The final drive works as the last stage in the power transmission process, converting the hydraulic pressure into mechanical energy. This energy then rotates the machine's track, propelling it forward or backward. Without a functioning final drive, an excavator would remain immobilized. Final drives need to be tough because they support massive weight loads and are used in challenging environments, such as construction sites, mining operations, and rugged terrains. Most final drive units consist of a hydraulic motor and a gearbox assembly, fine-tuned to ensure adequate torque and speed for movement.
Power Transmission – Transfers the hydraulic motor’s energy to power the machine’s tracks or wheels. Torque Conversion – Provides the necessary torque to overcome resistance and maintain steady movement. Load Management – Supports and distributes the weight of the machine during operation. Understanding the role of the final drive helps operators take better care of their machines and address issues before they escalate.
Now that you know what a final drive is, the next logical question might be, “Where is it located on an excavator?” Finding the final drive is straightforward once you know where to look. The final drive on an excavator is usually located at the base of the undercarriage, more specifically, near the drive sprockets. If you look beneath the machine, you’ll spot one final drive unit on each side of the excavator. These units connect directly to the tracks and are encased in sturdy housings to protect them from damage.
Look underneath the excavator's tracks to where the sprockets are mounted. The final drive is the large component powering the sprockets, ensuring the tracks move correctly. It is often enclosed in a cylindrical or rectangular casing to shield it from debris, dirt, and water. If you're conducting maintenance or repairs, you’ll need to access the final drive carefully since it is a sensitive yet essential part of the machine.
The final drive ratio is a technical term used to describe the relationship between the input speed of the hydraulic motor and the output speed (or torque) at the tracks or wheels. Essentially, it refers to how many revolutions the input shaft needs to make for the output shaft to complete one revolution. The final drive ratio determines both the speed and torque of the machine.
Low Gear Ratios (Higher Ratio Numbers) – These provide more torque but result in slower speeds. This is beneficial when the excavator is working on heavy-duty tasks, like digging in hard soil or lifting large amounts of weight. High Gear Ratios (Lower Ratio Numbers) – These provide increased speed but less torque, which is ideal for tasks requiring faster movement over smoother terrain. A poorly chosen or mismatched final drive ratio can greatly affect how efficiently an excavator performs. For example, a high-speed operation will fail if the final drive lacks enough torque for the task at hand. By using the right ratio, operators can optimize performance, reduce wear and tear, and extend the lifecycle of the machine.
| Final Drive Ratio | Effect on Torque | Effect on Speed | Best Suited For |
|---|---|---|---|
| High Ratio (e.g., 6:1) | Increased Torque | Reduced Speed | Heavy lifting, rugged terrains |
| Low Ratio (e.g., 3:1) | Reduced Torque | Improved Speed | Light work, smooth surfaces |
Understanding the final drive ratio allows operators to choose machines tailored for specific projects or adjust and fine-tune existing ones for the desired performance.
When talking about final drives in the context of excavators, the term final drive hydraulic excavator often comes up. This combines two critical aspects of excavator functionality—hydraulics and the final drive unit. Hydraulic systems are a hallmark of modern excavators. They provide powerful, precise movement for the various parts of the machine. The final drive is powered by the hydraulic motor, which converts hydraulic pressure into the mechanical energy needed to drive the machine's movement.
Precision Control – Hydraulic systems allow fine control over the machine's movement and tasks. Power Efficiency – The hydraulic motor and final drive combination ensures efficient use of energy, minimizing waste. Durability – Final drives for hydraulic excavators are typically built for resilience under extreme conditions. The innovation of hydraulic excavators has elevated construction and machinery technology to a new level, with the final drive being a key player in this system.
Caring for final drives is essential to keeping machinery running smoothly. Neglecting this part can lead to costly repairs or replacement. Here are some practical tips:
Regular Inspections – Check the final drive casing and connections for damage, cracks, or leaks. Pay attention to any unusual noise or vibration during operation. Oil Levels and Quality – The gearbox inside the final drive uses oil for lubrication and cooling. Check oil levels and replace them regularly to avoid wear and overheating. Cleanliness – Keep the final drive free of debris, mud, and dirt, as foreign particles can damage seals and gears. Load Management – Avoid overloading the excavator beyond its limits, as this puts extra strain on the final drive system. By staying proactive, operators can minimize downtime, improve efficiency, and avoid expensive repairs.
The final drive is located at the base of the undercarriage, near the drive sprockets. It connects directly to the tracks and powers their movement.
A final drive is a key component of heavy machinery that transfers power from the hydraulic motor to the machine's tracks or wheels, enabling movement.
The final drive ratio describes the relationship between the input speed of the motor and the output torque at the tracks. It plays a critical role in determining the speed and torque of the machine.
Regularly inspect the final drive for damage, check oil levels, clean it of debris, and avoid overloading the machine beyond its capacity.
Unusual noises, leaks, reduced torque, and inconsistent track movement are all signs that the final drive may be failing. Address these symptoms promptly to prevent further damage.
When it comes to replacement parts or new equipment for your excavator’s final drive, BN Gears is a trusted name in the industry. They specialize in high-quality final drive components designed for durability and performance. For inquiries and purchases, you can contact BN Gears through the following:
Email: info@hx-machinery.cn / vivian@hx-machinery.cn
Phone: +86-750-6318209
Whether you're looking for a replacement final drive hydraulic excavator component or detailed advice on final drive gear ratios, their team is always ready to assist. Invest in the best for your excavators, and trust your machines to experts who understand their core components. A functioning final drive isn’t just a mechanical necessity—it ensures the smooth and reliable operation of your equipment, keeping your projects on track!
