Excavator Final Drive Explained: How It Works, Repair Tips & Maintenance Guide

Views: 0     Author: Site Editor     Publish Time: 2025-09-30      Origin: Site

In the world of heavy construction and earthmoving equipment, the excavator final drive is one of the most critical components that ensures efficient operation and power delivery. Whether you’re a construction site manager, equipment operator, or fleet owner, understanding how this essential part works — and how to repair or maintain it — can save you significant time and money.

This guide covers everything you need to know about final drives, including how they function, whether they can be repaired, and the right steps to take if yours fails. By the end, you’ll be equipped with expert knowledge to extend the lifespan of your excavator and keep your projects running smoothly.

What Is the Final Drive on an Excavator?

The final drive on an excavator is a crucial component of its powertrain system. It serves as the link between the hydraulic motor and the track system, converting hydraulic energy into mechanical torque that propels the excavator forward or backward.


In simpler terms, the final drive is the “muscle” that moves the machine. It reduces the speed of the hydraulic motor while increasing torque, allowing the excavator to push through heavy loads and challenging terrain.

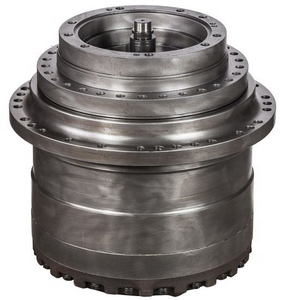

excavator final driveexcavator final drive

Key Functions of a Final Drive:

Function Description
Torque Conversion Converts high-speed hydraulic power into low-speed, high-torque mechanical power.
Power Transmission Transfers power from the hydraulic motor to the track sprockets.
Mobility Control Allows precise control of movement, enabling the excavator to maneuver efficiently.
Load Handling Provides the necessary torque to handle heavy digging, lifting, and trenching operations.


Without a properly functioning final drive, an excavator would struggle to move or operate efficiently. That’s why regular inspection and maintenance are vital.

Can a Final Drive Be Repaired?

Yes — in most cases, excavator final drive repair is possible and often more cost-effective than a complete replacement. However, whether a repair is feasible depends on the severity and type of damage.


Here’s a breakdown of the most common issues and whether they’re repairable:


Problem Cause Repairable?
Oil Leaks Damaged seals or gaskets ✅ Yes, by replacing seals
Abnormal Noise Worn bearings or gears ✅ Usually repairable
Loss of Power Internal wear or hydraulic issues ✅ In many cases
Overheating Low oil levels or friction ✅ Often fixable with maintenance
Severe Gear Damage Broken gear teeth or housing cracks ❌ May require full replacement



If the damage is limited to bearings, seals, or internal components, a repair is typically straightforward and cost-effective. However, if the housing is cracked or gears are severely worn, replacing the final drive for excavator might be the better option.

How Do I Repair My Excavator Final Drive?

Repairing a final drive can be a complex process that requires mechanical knowledge, specialized tools, and safety precautions. If you’re not experienced with heavy equipment maintenance, it’s often best to hire a professional. However, understanding the steps involved can help you make informed decisions or perform minor maintenance yourself.

Step-by-Step Excavator Final Drive Repair Process

1. Diagnose the Problem

Before starting any repair, carefully inspect the excavator for signs of final drive issues:

Oil leaking around the drive unit

Grinding, knocking, or whining noises

Reduced power or slow movement

Excessive heat from the final drive casing

A diagnostic check can also include checking hydraulic pressure and oil quality.

2. Disassemble the Final Drive

Once you’ve identified the problem, carefully remove the final drive from the machine:

Disconnect hydraulic lines and electrical connectors

Remove mounting bolts

Gently detach the unit from the track system

Ensure the excavator is parked on a flat surface and fully powered down before disassembly.

3. Clean and Inspect Components

Use a degreaser or solvent to clean the parts. Inspect each component for wear or damage:

Bearings: Look for scoring, pitting, or play

Gears: Check for broken or worn teeth

Seals and O-rings: Inspect for cracks or leaks

4. Replace Damaged Parts

Any worn or damaged parts should be replaced with OEM-quality components. Common parts replaced during excavator final drive repair include:

Bearings and seals

Gear sets

Hydraulic motor components

5. Reassemble and Reinstall

After replacing parts, carefully reassemble the unit. Make sure to:

Torque bolts to the manufacturer’s specifications

Reconnect all hydraulic and electrical connections

Refill the unit with clean, manufacturer-approved gear oil

6. Test the Final Drive

Once installed, operate the excavator in a controlled environment. Listen for unusual noises, check for leaks, and monitor performance. If everything runs smoothly, your excavator is ready to return to work.

excavator final drive repairexcavator final drive repair

Tips for Final Drive Maintenance

Preventive maintenance is the best way to avoid costly repairs. Here are some expert tips:

Check oil levels regularly: Low oil can cause overheating and damage.

Inspect seals and bolts: Look for leaks or loose components.

Avoid overloading: Excessive weight puts unnecessary stress on the final drive.

Flush hydraulic systems: Contaminants in the oil can accelerate wear.

Schedule regular inspections: Routine checks can catch small problems early.

FAQ: Excavator Final Drive

Q1: What is the final drive on an excavator?

The final drive is a gear reduction unit that converts hydraulic power into mechanical torque, allowing the excavator to move and handle heavy loads efficiently.

Q2: Can a final drive be repaired?

Yes. Many common issues — such as oil leaks, noisy operation, and power loss — can be repaired. However, severe damage may require full replacement.

Q3: How do I repair my excavator final drive?

Repair involves diagnosing the issue, disassembling the unit, inspecting and replacing worn parts, reassembling the drive, and testing it. If you’re unsure, hiring a professional repair technician is recommended.

Q4: How often should I service my final drive?

It’s best to inspect the final drive every 250 operating hours and perform a full service every 1,000 hours or as recommended by the manufacturer.

Q5: What are the signs my final drive is failing?

Common signs include unusual noises, leaking oil, slow movement, overheating, and power loss.


In today’s heavy equipment market, almost all leading excavator brands rely on the excavator final drive as a key component for power transmission and operational stability. Whether you operate machines from DOOSAN, JCB, CASE, SUMITOMO, or HYUNDAI, a high-quality final drive ensures your excavator maintains excellent performance and efficiency, even under demanding working conditions.


Conclusion: Invest in Quality for Long-Term Performance

The excavator final drive plays a vital role in your machine’s performance and reliability. By understanding how it works, how to repair it, and how to maintain it, you can extend your excavator’s lifespan and avoid costly downtime.


When repairs or replacements are needed, always choose high-quality parts from trusted suppliers. For reliable final drive for excavator solutions and expert support, we recommend BN Gears, a professional manufacturer specializing in durable and efficient final drive systems.
