When it comes to heavy machinery performance, few components are as crucial yet overlooked as the excavator final drive. This powerhouse component determines whether your excavator moves smoothly across job sites or struggles with basic maneuvers. Understanding your machine's final drive system can save you thousands in repair costs and prevent costly downtime.
Whether you're a seasoned operator, fleet manager, or new to heavy equipment maintenance, this comprehensive guide will walk you through everything you need to know about excavator final drives, from basic functions to professional servicing techniques.
The excavator final drive serves as the critical link between your machine's hydraulic system and track movement. Think of it as the transmission system for your excavator's tracks – it takes the high-speed, low-torque output from the hydraulic motor and converts it into the low-speed, high-torque power needed to move your heavy machine.

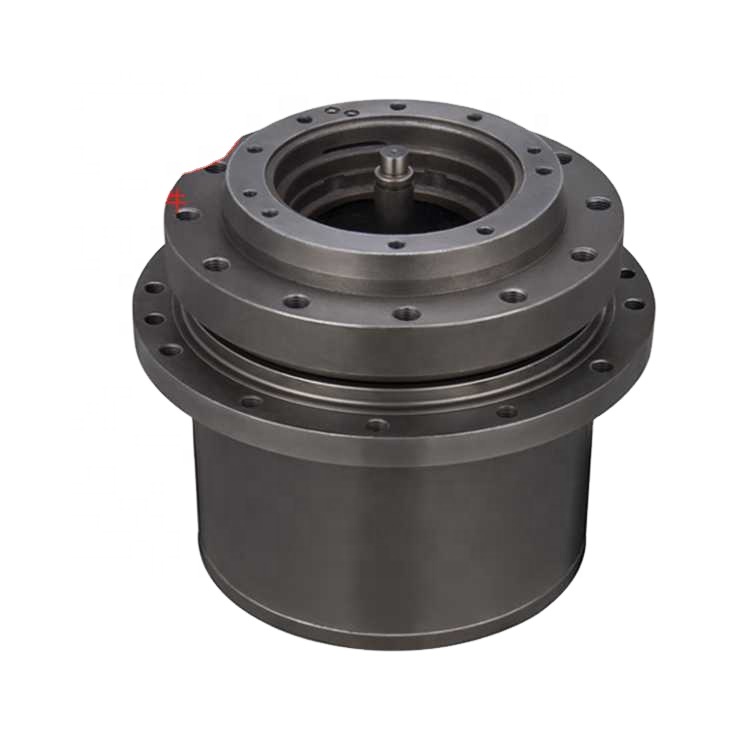

Located at each track assembly, the final drive consists of several key components working in harmony. The hydraulic motor provides the initial power, which flows through a planetary gear reduction system. This gear system dramatically increases torque while reducing rotational speed, giving your excavator the pulling power it needs to navigate challenging terrain.

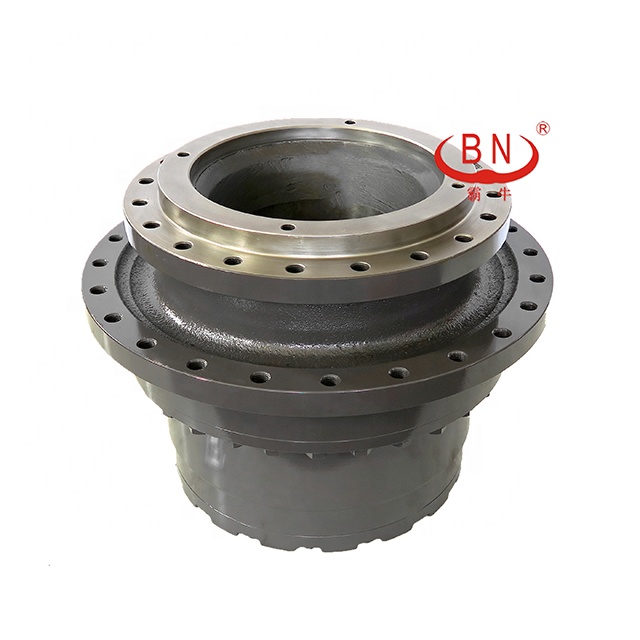

The final drive housing protects these precision components from dirt, debris, and moisture – environmental hazards that could quickly destroy expensive internal parts. Inside this protective casing, you'll find the planetary gears, hydraulic motor, and various seals that keep everything running smoothly.
Most excavator final drive systems operate on hydraulic pressure ranging from 3,000 to 5,000 PSI, depending on your machine's size and manufacturer specifications. This immense pressure, combined with the gear reduction ratio (typically between 20:1 and 40:1), allows even compact excavators to generate impressive ground force.
Understanding excavator final drive parts helps operators recognize potential issues before they become expensive failures. Each component plays a specific role in converting hydraulic power into track movement.
The hydraulic motor converts pressurized hydraulic fluid into rotational motion. High-quality motors feature precision-machined components that can withstand extreme pressures while maintaining efficiency. These motors typically last 3,000-5,000 operating hours with proper maintenance.

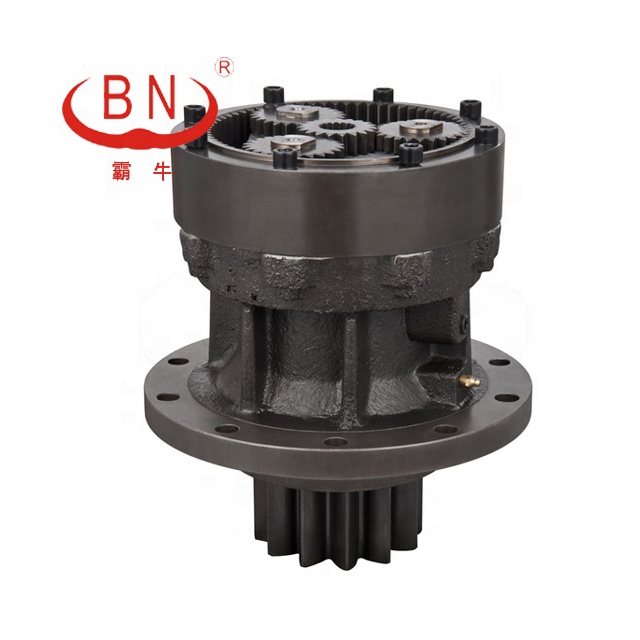

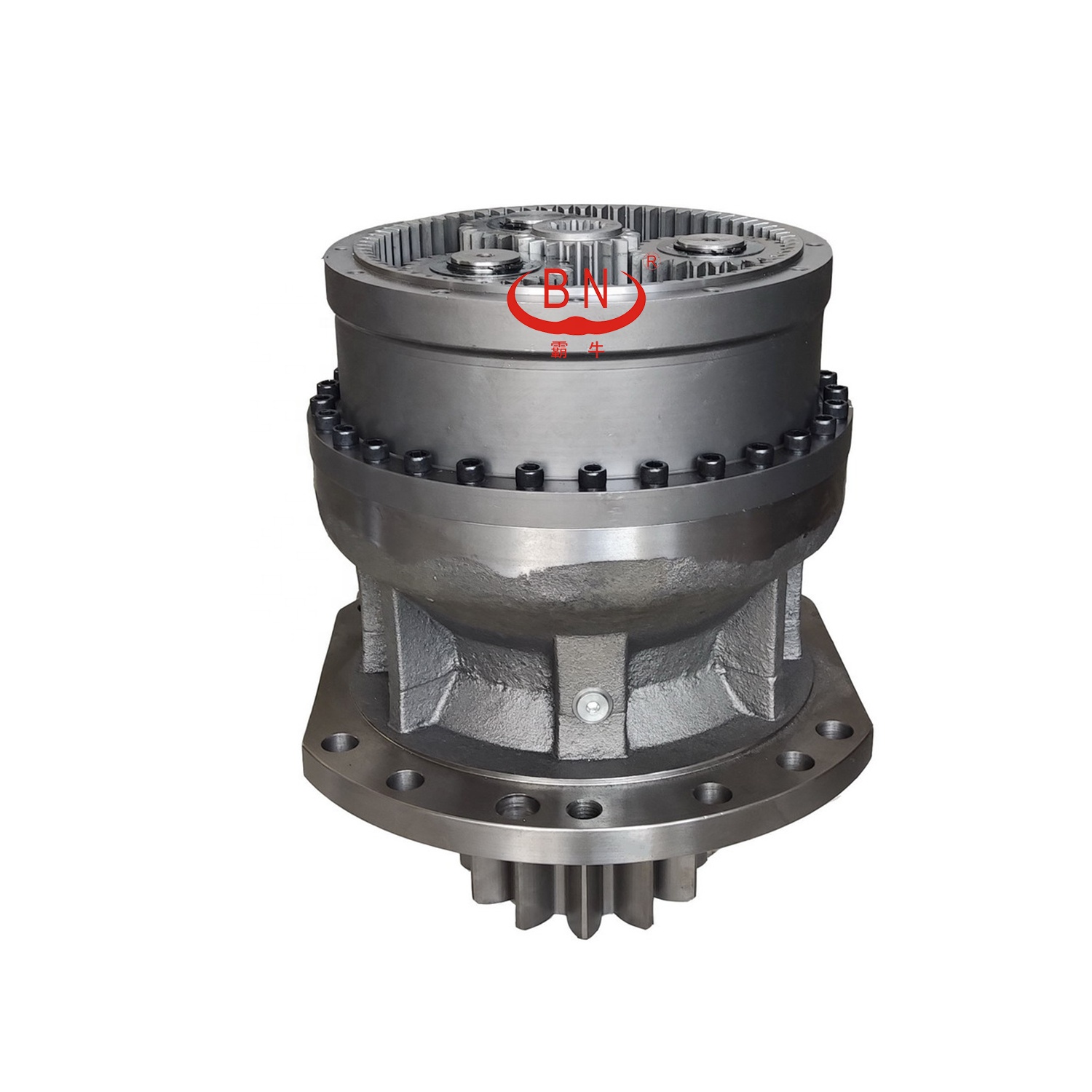

The planetary gear reduction system forms the heart of torque multiplication. Multiple planet gears orbit around a central sun gear, all contained within an outer ring gear. This configuration provides excellent load distribution and compact design while achieving high reduction ratios.
The drive sprocket transfers power from the final drive to the rubber track. Worn sprockets can cause premature track wear and reduced traction. Regular inspection of sprocket teeth helps identify replacement needs before track damage occurs.
Multiple sealing systems prevent contamination while retaining hydraulic fluid and gear oil. These include face seals, O-rings, and rotating seals that must withstand extreme pressure differentials and temperature variations.
Recognizing early warning signs prevents minor issues from becoming major failures. Here are key indicators that your excavator final drive requires professional attention:
Unusual Noises: Grinding, whining, or clicking sounds during operation often indicate worn gears or insufficient lubrication. These noises typically worsen under load or during direction changes.Reduced Travel Speed: If your excavator moves slower than usual, even with proper hydraulic pressure, internal wear may be limiting power transfer efficiency.Jerky Movement: Smooth, consistent travel should be the norm. Jerky or hesitant movement suggests internal component wear or hydraulic system issues.Visible Leaks: Oil puddles beneath track assemblies indicate seal failure. While small seepage may be acceptable, active leaking requires immediate attention. Excessive Heat: Final drive housings that become extremely hot during operation may indicate insufficient lubrication or internal friction from worn components.
Proper final drive servicing requires systematic attention to multiple maintenance points. Regular servicing extends component life and prevents catastrophic failures that can sideline equipment for weeks.
Implement daily visual inspections as part of your pre-operation routine. Look for leaks, unusual wear patterns, and loose mounting hardware. Weekly inspections should include checking fluid levels and examining seals for deterioration.
Monthly comprehensive inspections involve measuring gear oil levels, checking hydraulic connections, and documenting any changes in performance or noise levels. This documentation helps identify gradual changes that might otherwise go unnoticed.
Final drive systems require both hydraulic fluid and gear oil maintenance. Hydraulic fluid powers the motor, while gear oil lubricates the planetary gear system. These fluids must be changed according to manufacturer specifications – typically every 1,000-2,000 operating hours.
Use only manufacturer-approved fluids with proper viscosity ratings. Contaminated or incorrect fluids can cause premature wear and void warranty coverage. Always check fluid levels when the machine is level and at operating temperature.
Seals represent the most frequently replaced final drive components. Face seals typically last 2,000-3,000 hours, while O-rings may need replacement every 1,500-2,500 hours depending on operating conditions.
Professional seal replacement requires specialized tools and precise installation techniques. Improper installation can cause immediate failure or significantly reduce seal life.
Annual comprehensive inspections should include pressure testing, backlash measurements, and component wear analysis. These tests identify problems before they cause secondary damage to expensive components.
Magnetic drain plugs help monitor internal wear by collecting metal particles. Excessive metal content indicates accelerated wear requiring immediate attention.
Maintenance Task | Frequency | Key Points |
|---|---|---|
Visual Inspection | Daily | Check for leaks, damage, unusual wear |
Fluid Level Check | Weekly | Measure when level and at temperature |
Comprehensive Service | Monthly | Document performance changes |
Fluid Change | 1,000-2,000 hours | Use approved fluids only |
Seal Inspection | Quarterly | Replace at first sign of deterioration |
Professional Service | Annually | Pressure test and wear analysis |
Operating conditions significantly impact maintenance intervals. Machines working in dusty, wet, or extremely hot conditions require more frequent service. Cold weather operations may need different fluid specifications for proper performance.
Track tension also affects final drive longevity. Overtightened tracks create excessive load on drive components, while loose tracks can cause sprocket wear and reduced efficiency.
Problem: Excavator won't move despite normal engine RPM
Check hydraulic fluid level and pressure Inspect for broken drive chains or damaged sprockets Verify travel motor operation
Problem: Intermittent travel performance
Examine hydraulic connections for air leaks Check for contaminated hydraulic fluid Inspect relief valve settings
Problem: Excessive final drive temperature Verify proper gear oil level and condition Check for restricted cooling airflow Inspect for internal component binding
The excavator final drive is a gear reduction system that converts high-speed, low-torque hydraulic motor output into the low-speed, high-torque power needed to drive the tracks. It consists of a hydraulic motor, planetary gear system, and protective housing that work together to provide the mechanical advantage necessary for heavy-duty excavation work.
Final drive servicing involves regular fluid changes, seal inspections, and component wear monitoring. Key steps include checking gear oil levels monthly, changing fluids every 1,000-2,000 hours, inspecting seals quarterly, and conducting annual comprehensive inspections with pressure testing. Always use manufacturer-approved fluids and follow proper service intervals based on operating conditions.
Service frequency depends on operating conditions, but general guidelines include daily visual inspections, weekly fluid level checks, monthly comprehensive inspections, and annual professional servicing. Harsh operating conditions may require more frequent service intervals.
Common causes include contaminated fluids, worn seals, improper track tension, overloading, and inadequate maintenance. Environmental factors like extreme temperatures, dust, and moisture can accelerate wear if not properly managed.
Final drive maintenance and issues discussed are relevant for a variety of machinery brands, including SANY, ZOOMLION, LIUGONG, YANMAR, KUBOTA, and BAUER. Each of these manufacturers provides equipment that relies heavily on properly functioning final drives, making regular inspection and maintenance crucial for optimal performance and longevity.
When replacement becomes necessary, selecting quality excavator final drive parts makes the difference between reliable operation and recurring problems. BN Gears has established itself as the trusted choice for professionals who demand reliability and performance from their heavy equipment.
BN Gears specializes in precision-engineered final drive systems designed to meet or exceed OEM specifications. Their comprehensive range of excavator final drive parts ensures proper fit and long-lasting performance across all major equipment brands.
