Your compact excavator is a powerhouse on the job site, but its performance hinges on a critical, often overlooked component: the final drive. This essential part translates power from the hydraulic motor into the force needed to turn the tracks, enabling your machine to move, dig, and operate effectively. Understanding your compact excavator final drive is not just for mechanics; it's crucial for operators and fleet managers who want to maximize uptime, efficiency, and the lifespan of their equipment.
This guide will walk you through everything you need to know about the excavator final drive. We will explore its core function, what determines its specifications, and how long you can expect it to last. Whether you operate a JCB, CASE, SUMITOMO, HYUNDAI, or KOMATSU machine, this information will help you maintain your equipment and make informed decisions when it's time for a replacement.

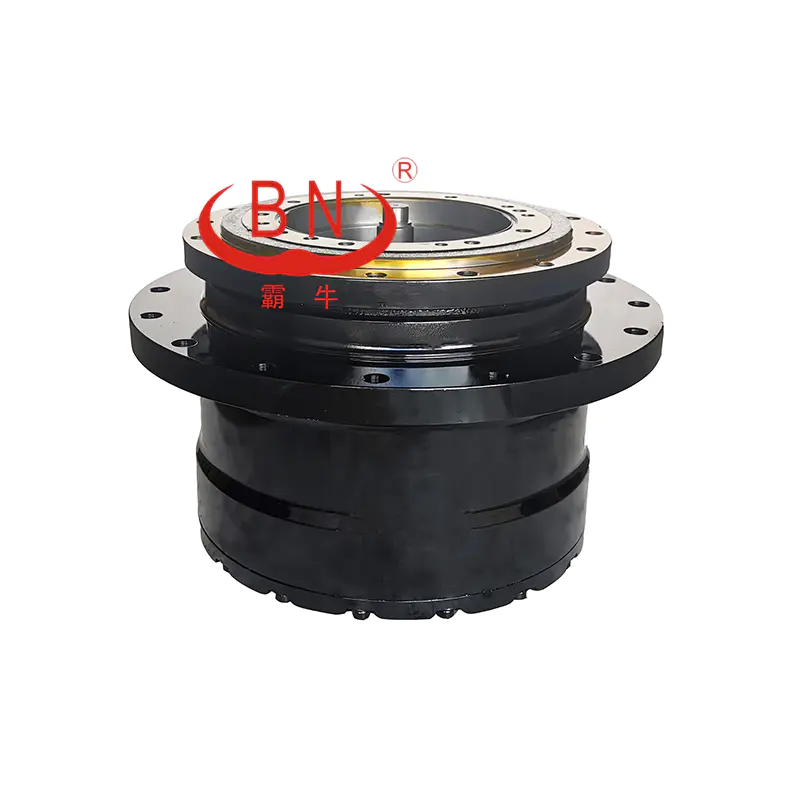

At its core, an excavator final drive, also known as a travel motor or track drive, is a gearbox assembly connected to the machine's hydraulic system. It receives high-speed, low-torque power from the hydraulic motor and converts it into low-speed, high-torque power. This high-torque output is what gives your excavator the brute force required to rotate the tracks and propel the machine across challenging terrain.
Think of it as the transmission for your excavator's tracks. Without a functioning final drive, your excavator is stationary, rendering it useless. The assembly consists of a series of planetary gears, bearings, and seals, all housed within a durable casing filled with gear oil. This intricate system is designed to withstand immense pressure and continuous use, making it a cornerstone of your machine's mobility and overall productivity.
The role of a compact excavator final drive extends beyond simple movement. It performs several vital functions that are essential for safe and efficient operation.
First and foremost is torque multiplication. The hydraulic motor on its own doesn't produce enough torque to move a heavy machine. The final drive's gear system multiplies this torque, providing the necessary power to overcome resistance from the ground, climb inclines, and navigate rough job sites. This is why a smaller, compact excavator can still exhibit impressive pushing and pulling power.
Second, the final drive acts as a speed reducer. The hydraulic motor spins at a high RPM, which is too fast for precise track control. The gearing within the final drive reduces this rotational speed to a manageable level, allowing the operator to maneuver the excavator with accuracy. This control is vital for tasks like grading, trenching, and working in tight spaces.
Finally, the final drive assembly supports the machine's weight. It serves as a structural link between the excavator's frame and the track system. The bearings and robust housing are engineered to handle the immense static and dynamic loads placed on them during operation.
Choosing or replacing a compact excavator final drive isn't a one-size-fits-all process. The right final drive on excavator is determined by several factors specific to the machine it will be installed on. Manufacturers like JCB, CASE, SUMITOMO, HYUNDAI, and KOMATSU design their excavators with specific performance requirements, and the final drive must match these. Key determinants include the machine's weight, hydraulic system pressure, and required travel speed. A heavier machine requires a final drive capable of producing more torque, while the hydraulic system's flow and pressure ratings dictate the motor's design.
Feature | Description |
|---|---|
Function | The primary function is to convert high-speed, low-torque power from the hydraulic motor into low-speed, high-torque power to turn the tracks. This enables movement, provides pushing power, and allows for precise control. |
Service Life | The typical service life of a final drive is between 3,000 and 5,000 operating hours. However, this can vary significantly based on maintenance practices, operating conditions, and operator habits. Regular gear oil changes and inspections are critical for longevity. |
Determination | The correct final drive is determined by the excavator's make, model, and serial number. Factors like machine weight, hydraulic pressure (PSI), hydraulic flow (GPM), and desired travel speed influence the gear ratios, motor displacement, and overall size of the final drive unit. |
While final drives are built to be tough, they are not indestructible. Proper maintenance is the single most important factor in extending the service life of this vital component. Neglecting maintenance can lead to premature failure, costly downtime, and expensive repairs.
The gear oil inside your final drive housing is its lifeblood. It lubricates the gears and bearings, reduces friction, and helps dissipate heat. Over time, this oil breaks down and becomes contaminated with microscopic metal particles from normal wear and tear.
Follow your manufacturer's recommendations for service intervals, but a good rule of thumb is to check the gear oil level every 100 hours and change it at least once a year or every 500 hours. When draining the old oil, inspect it for metal shavings or a milky appearance, which can indicate internal damage or water contamination, respectively.
The case drain line protects the hydraulic motor's shaft seal from being blown out by high pressure. A filter in this line prevents contaminants from flowing back into the hydraulic system. If this filter becomes clogged, pressure can build up inside the final drive, leading to seal failure and catastrophic damage. Clean or replace the case drain filter whenever you service the main hydraulic filters. This simple step is one of the most effective ways to prevent a major failure in your excavator final drive.
Leaks are a clear warning sign of a problem. A leak from the seal between the sprocket and the final drive housing indicates a failing mechanical face seal (also known as a duo-cone seal). If oil can get out, dirt, mud, and water can get in. This contamination will quickly destroy the internal components of your final drive. If you spot a leak, stop operating the machine and get it repaired as soon as possible.
A: Common signs of a failing final drive include a loss of power, grinding or whining noises, frequent oil leaks, the machine pulling to one side, or the track locking up. If you notice any of these symptoms, it's time for an inspection.
A: Repairing an excavator final drive is a complex task that requires specialized tools, a clean environment, and extensive knowledge of planetary gear systems. For most owners and operators, replacing the entire unit with a new or remanufactured one is a more practical and reliable solution.
A: Both are viable options. New units offer the latest in design and materials, while high-quality remanufactured drives can provide comparable performance and longevity at a lower cost. The best choice depends on your budget and the availability of parts for your specific machine.
The excavator final drive is a hardworking component that is essential to your machine’s performance. By understanding its function and committing to a proactive maintenance schedule, you can ensure your compact excavator operates reliably and efficiently for years to come. Proper care will minimize downtime, reduce operating costs, and protect your investment.
