The final drive system is a pivotal element in machinery and vehicles, influencing how efficiently power is transferred from the engine to the wheels or tracks. It directly determines the torque delivered to propel equipment, making it essential in machinery like excavators, tractors, and vehicles. This article will explore the final drive system, the concept of the final drive ratio, and how to calculate the final drive gear ratio. By understanding these elements, users can optimize performance and efficiency for various types of machinery.
The final drive is the last stage in the drivetrain of vehicles or machines. It plays a crucial role in transferring mechanical energy from the transmission to the wheels or tracks of a vehicle. Whether in cars, heavy-duty trucks, or construction equipment like excavators, the final drive system ensures efficient power delivery by gearing down the speed and amplifying torque.
| Component Name | Description |
|---|---|
| Drive Shaft | Transmits torque from the engine to the differential and final drive housing. |
| Final Drive Gear | A large gear that meshes with the pinion to convert high-speed, low-torque energy into high torque. |
| Differential | Allows the driving wheels to rotate at different speeds, essential for smooth cornering. |
| Bearings and Seals | Reduce friction and wear, ensuring seamless operation of the gears. |

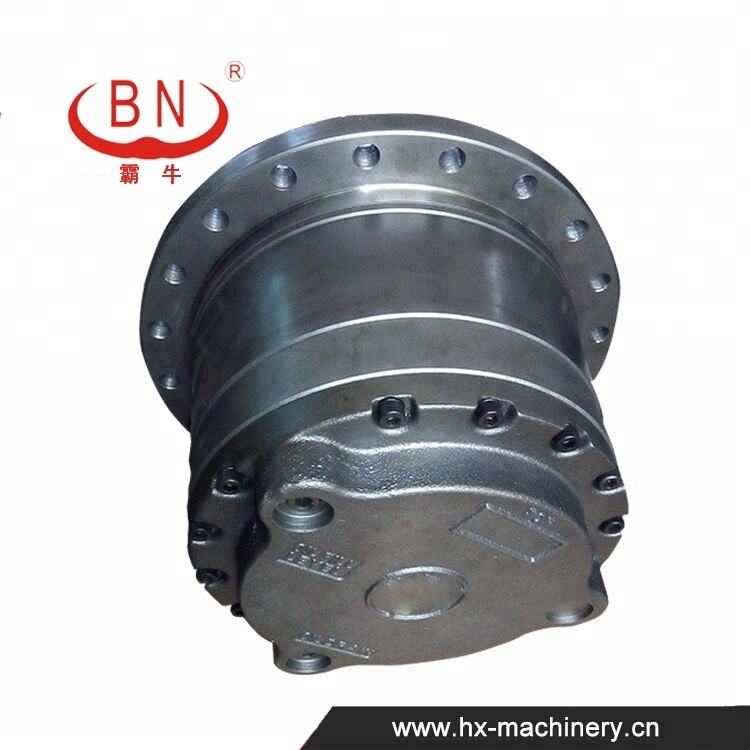

For heavy equipment such as excavators, the final drive system ensures the machine's tracks or wheels receive adequate torque to move over uneven terrain or handle high workloads. Without a well-functioning final drive, an excavator would struggle to generate the power needed for its operations, making the component indispensable in construction and industrial applications. It’s no wonder terms like “final drive excavator” are so frequently searched when repairing or optimizing this equipment.
The final drive ratio is a numerical figure that represents the relationship between the rotation of the drive pinion (input gear) and the larger ring gear (output gear) in the final drive assembly. This ratio determines how many times the input gear rotates to achieve one full rotation of the output gear.
To determine the final drive ratio, use the following simple formula: Final Drive Ratio (FDR) = Number of Teeth on Ring Gear ÷ Number of Teeth on Pinion Gear For example, if the ring gear has 40 teeth and the pinion gear has 10 teeth: Final Drive Ratio = 40 ÷ 10 = 4.0 A ratio of 4.0 implies that for every four rotations of the drive pinion, the ring gear will rotate once.
The final drive ratio has a significant impact on the overall performance of a machine or vehicle. Here’s why:
A high final drive ratio delivers more torque at the wheels or tracks but reduces the speed of the vehicle. This is ideal for machines like excavators that require additional power to lift and move heavy loads.
Conversely, a low ratio results in higher speed but reduced torque, making it suitable for passenger cars aiming for greater fuel efficiency and speed.
Operational Efficiency: By matching the final drive ratio to the intended purpose of the machine (heavy-duty work, high speed, etc.), manufacturers and operators can improve operational efficiency.
| Vehicle Type | Common Final Drive Ratio | Purpose of Ratio |
|---|---|---|
| Passenger Cars | 3.0 to 4.0 | Balances moderate torque with higher speeds for highways. |
| Heavy Trucks | 4.5 to 6.0 | Maximizes torque for hauling heavy cargo. |
| Excavators | 10.0 or higher | Ensures high torque for rugged terrain and heavy loads. |
| Racing Cars | 2.5 to 3.0 | Prioritizes speed over torque for competitive performance. |
If you’re a machinery owner, auto enthusiast, or technician, you may occasionally need to calculate the final drive ratio of your system. A final drive gear ratio calculator can come in handy for quick and accurate calculations, but you can also compute it manually.
First, identify and count the number of teeth on the pinion gear (small gear). Next, count the number of teeth on the ring gear (large gear).
Use the Formula : Plug the numbers into the formula : Final Drive Ratio = (Number of Teeth on the Ring Gear) ÷ (Number of Teeth on the Pinion Gear)
Interpret the Result : Higher results correspond to more torque and less speed. Lower results equate to greater speed and less torque.
Imagine you own an excavator, and you find that the ring gear has 50 teeth while the pinion gear has 12 teeth. The calculation would look like this: Final Drive Ratio = 50 ÷ 12 ≈ 4.17 This means the pinion rotates 4.17 times for every full rotation of the ring gear, providing significant torque ideal for excavation tasks.
While manual calculations are straightforward, a calculator can save time and reduce the likelihood of errors. Many online tools allow you to input the respective gear counts and instantly display the final drive ratio, streamlining the process. These tools are particularly useful when servicing heavy machinery like excavators, where different final drive assemblies might have varying configurations.
Using an incorrect final drive ratio can lead to issues such as poor performance, reduced fuel efficiency, and insufficient torque or speed for the operation. It’s crucial to match the ratio to the machine's or vehicle's intended purpose.
Yes, mechanics can replace the pinion or ring gear to adjust the final drive ratio. However, it’s essential to consult with professionals, as significant modifications may affect vehicle handling, fuel efficiency, or longevity.
For heavy machinery like excavators, a higher final drive ratio is preferable because it maximizes torque, enabling the machine to handle tough tasks such as lifting and moving heavy loads.
Final drives, especially in heavy equipment, should be inspected and serviced regularly. Components such as gears, seals, and bearings should be lubricated and checked for wear to prevent breakdowns.
Yes, but you will need accurate gear counts. Worn gears can sometimes result in misaligned or chipped teeth, so visual inspection and careful counting are essential before calculating.
