If you work with earth-moving machinery, one of the most critical components you will encounter is the final drive excavator system. So, what is the final drive on an excavator, and why does it matter so much? Simply put, the final drive on excavator is the component that converts hydraulic power into mechanical torque, allowing the machine to move smoothly and efficiently.
In this guide, we will explain the working principle of the final drive excavator, break down its structure using an excavator final drive diagram, and show how reliable engineering directly affects machine lifespan. Throughout the article, we will also introduce the manufacturing strength of HONGXIANG MACHINERY CO. LTD, a leading specialist in travel and swing reducers.
HONGXIANG MACHINERY CO. LTD, operating under the HONGXIANG BN brand, is a leading manufacturer and supplier of core components for earth-moving machines, specializing in Travel Reducer and Swing Reducer systems.
Founded in 2000, the company operates an 18,000 m² factory area equipped with advanced production equipment, a high-skilled R&D and marketing team, and excellent processing technology. These capabilities allow HONGXIANG MACHINERY CO. LTD to deliver stable, durable, and high-precision final drive excavator solutions to global customers.
CASE, SUMITOMO, HYUNDAI, KOMATSU, KATO, KOBELCO, JOHN DEERE

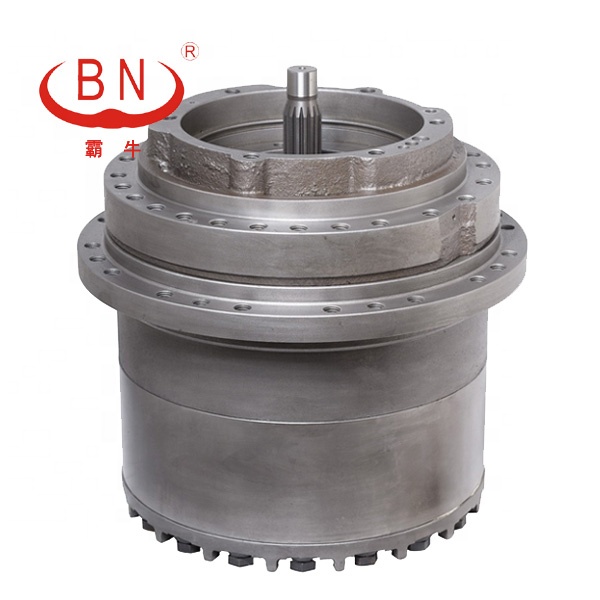

The final drive on excavator is the last stage of the power transmission system. It sits between the hydraulic motor and the tracks. In every final drive excavator, this component multiplies torque while reducing speed, allowing heavy machines to move under extreme loads.
From a mechanical perspective, the final drive excavator usually consists of:
A hydraulic motor
A planetary gear reduction system
Bearings, seals, and housing
An excavator final drive diagram clearly shows how hydraulic energy enters the motor, passes through the gear stages, and exits as powerful rotational force at the sprocket.
Without a properly designed final drive on excavator, even the strongest hydraulic system cannot deliver effective traction.
To truly understand a final drive excavator, it helps to visualize an excavator final drive diagram. The working process follows these steps:
Hydraulic oil flows into the motor
The motor shaft rotates
Torque is transferred into planetary gears
Speed is reduced, torque is increased
Power reaches the track sprocket
This sequence is repeated every time the machine moves. A well-engineered final drive on excavator ensures smooth motion, high efficiency, and minimal power loss.
An excavator final drive diagram is one of the best tools for understanding how the system functions internally. It typically highlights:
| Component | Function in Final Drive Excavator |
|---|---|
| Hydraulic Motor | Converts oil pressure into rotation |
| Sun Gear | Central gear distributing torque |
| Planet Gears | Multiply torque in stages |
| Ring Gear | Provides gear reduction |
| Bearings & Seals | Maintain alignment and prevent leakage |
By studying an excavator final drive diagram, operators and technicians can quickly identify wear points and understand how failures develop in a final drive excavator.
The final drive on excavator directly affects:
Travel speed
Load-handling capability
Fuel efficiency
Overall machine lifespan
Any weakness in the final drive excavator will result in reduced performance, abnormal noise, overheating, or even total machine downtime. This is why manufacturers like HONGXIANG MACHINERY CO. LTD invest heavily in precision machining and strict quality control.
Even with good maintenance, a final drive excavator can experience wear over time. Common issues include:
Oil leakage
Abnormal vibration
Loss of torque
Overheating
An excavator final drive diagram helps technicians locate whether the issue originates from seals, bearings, or planetary gears. Regular inspection of the final drive on excavator is essential to prevent costly failures.
Proper care significantly extends the life of a final drive excavator. Key maintenance practices include:
Regular oil changes
Checking for metal particles
Monitoring operating temperature
Inspecting seals and bolts
Understanding the structure through an excavator final drive diagram allows maintenance teams to service the final drive on excavator more effectively.
The final drive excavator solutions from HONGXIANG MACHINERY CO. LTD are compatible with major global brands:
| Brand | Final Drive on Excavator Compatibility |
|---|---|
| KOMATSU | High torque travel systems |
| HYUNDAI | Durable final drive excavator units |
| KOBELCO | Precision-matched reducers |
| JOHN DEERE | Long-life final drive on excavator |
| CASE | Heavy-duty applications |
Each final drive excavator is engineered to meet OEM specifications, ensuring direct replacement and stable performance.
HONGXIANG MACHINERY CO. LTD stands out in the industry due to:
Advanced production equipment
Strong R&D capability
Strict quality inspection
Proven performance in global markets
Every final drive on excavator is manufactured with attention to detail, from material selection to final testing. When customers review an excavator final drive diagram, they can see the difference in engineering quality.
The final drive on excavator converts hydraulic power into mechanical torque, allowing the excavator to move and turn efficiently.
With proper maintenance, a final drive excavator can last thousands of operating hours.
An excavator final drive diagram helps operators understand internal components and troubleshoot problems accurately.
In many cases, yes. However, severe damage may require replacement of the entire final drive excavator.
