Part name | 114-1478 191-3241 E330 FINAL DRIVE GROUP |
Equipment | Apply to CATERPILLAR EXCAVATOR |
| E330 | |
| PART NO | 114-1478 191-3241 |
| Stock code | 9201953 |
| Category | Construction Machinery Parts, Excavator Spare Parts |
| Installation | POWER TRAIN |
| Application | Replacement |
| Item condition | NEW |
| Logo | BN |
| MOQ | 1pc |
◆ Completely, assembly, and ready to installed in your CAT 330 excavators.
◆ Without motor.
◆ All components are produced by us.
◆ All new, undamaged.
◆ Painted or unpainted, depend on requirement
◆ 1000 working hours warranty, call or email with any questions.
◆ Plywood case packing, free of fumigation
◆ Deliver to worldwide by sea, air, or carrier.

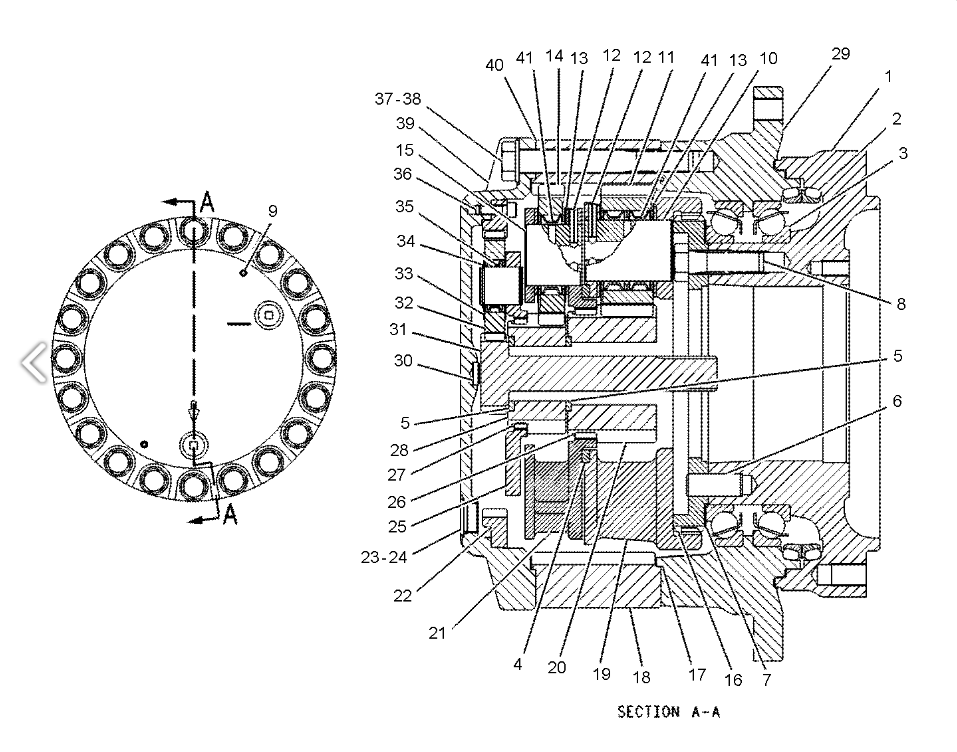

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 114-1480 | [1] | HOUSING-MOTOR | |
| 2. | 132-6141 | [1] | SEAL GP-DUO-CONE | |
| 9W-5976 | [2] | RING-SEALING | ||
| 3. | 168-8453 | [2] | BALL BEARING | |
| 4. | 7Y-0644 | [1] | SPACER | |
| 5. | 7Y-0595 | [2] | SPACER | |
| 6. | 114-1541 | [6] | PIN-DOWEL | |
| 7. | 110-7234 B | [1] | SHIM (0.15MM) | |
| 110-7235 B | [1] | SHIM (0.3MM) | ||
| 110-7236 B | [1] | SHIM (0.4MM) | ||
| 110-7237 B | [1] | SHIM (0.5MM) | ||
| 110-7238 B | [1] | SHIM (0.6MM) | ||
| 110-7239 B | [1] | SHIM (0.7MM) | ||
| 110-7240 B | [1] | SHIM (0.8MM) | ||
| 110-7241 B | [1] | SHIM (1MM) | ||
| 110-7242 B | [1] | SHIM (1.6MM) | ||
| 8. | 6V-8133 M | [10] | BOLT (M24X3.0X80MM) | |
| 9. | 096-3216 M | [2] | SETSCREW-SOCKET | |
| 10. | 7Y-0662 | [3] | SHAFT-PLANETARY | |
| 11. | 7Y-0663 | [3] | GEAR-PLANETARY (20 T) | |
| 12. | 095-0891 | [6] | PIN-SPRING | |
| 13. | 7Y-1094 | [12] | WASHER | |
| 14. | 7Y-0659 | [3] | GEAR-PLANETARY (22 T) | |
| 15. | 7Y-0661 | [3] | SHAFT-PLANETARY | |
| 16. | 110-7227 | [1] | COUPLING-GEAR | |
| 17. | 2P-3628 | [1] | SEAL-O-RING (412.23MM ID) | |
| 18. | 7Y-0642 | [1] | GEAR-RING (63 T) | |
| 19. | 110-7228 | [1] | CARRIER-PLANETARY | |
| 20. | 7Y-0639 | [1] | GEAR-SUN (21 T) | |
| 21. | 7Y-0645 | [1] | CARRIER | |
| 22. | 110-7229 | [1] | GEAR-RING | |
| 23. | 7M-8485 | [2] | SEAL-O-RING (29.74MM ID) | |
| 24. | 3E-2338 | [2] | PLUG-PIPE | |
| 25. | 110-7243 | [1] | CARRIER AS | |
| 7Y-0656 | [3] | SHAFT-PLANETARY | ||
| 26. | 7Y-0667 | [1] | RING-RETAINING | |
| 27. | 093-1731 | [1] | RING-RETAINING | |
| 28. | 110-7231 | [1] | GEAR-SUN | |
| 29. | 114-1479 | [1] | HOUSING-SPROCKET | |
| 30. | 094-0577 | [1] | PLATE (7MM THK) | |
| 31. | 110-7232 | [1] | GEAR-SUN | |
| 32. | 110-7233 | [3] | GEAR-PLANET | |
| 33. | 094-0584 | [6] | WASHER | |
| 34. | 8T-4240 | [3] | RING-RETAINING | |
| 35. | 094-1516 | [3] | BEARING-ROLLER | |
| 36. | 9X-6032 M | [12] | BOLT-SOCKET HEAD (M10X1.5X30MM) | |
37. [20] | BOLT (M24X3X190MM) | |||
| 38. | 8T-4167 | [20] | WASHER (4.0MM THK) | |
| 39. | 7Y-0646 | [1] | COVER | |
| 40. | 1U-8846 B | [6] | SEALANT | |
| 41. | 7Y-0664 | [9] | BEARING-ROLLER AS | |
| B | USE AS REQUIRED | |||
| M | METRIC PART | |||
