267-6796 378-9567 227-6116 227-6115 191-2682 199-4575 Apply for caterpillar cat excavator spare parts 320D 323D 325C 325D 329D excavator final drive assy

Share to:

267-6796 378-9567 227-6116 227-6115 191-2682 199-4575 Apply for caterpillar cat excavator spare parts 320D 323D 325C 325D 329D excavator final drive assy

BN Excavator Travel Reduction Gearbox offers robust performance and durability, ensuring smooth operation and enhanced efficiency for excavators. Trustworthy choice for reliable machinery, delivering consistent power and longevity.Click to find more styles.

Availability:



Inquire Add to Basket

Product Description

267-6796 Apply for caterpillar cat excavator spare parts 320D 323D 325C 325D 329D excavator final drive assy

Products Description

Final Drive & Swing Components for Excavators:

Planetary drive gears must withstand the high forces of torque generated by the engine and transfer these loads to move the equipment.
All BN gears and final drive gears are manufactured to precise tolerances for reliable operation. The manufacturing method includes a heat treatment process that increases bending strength, prevents case crushing and provides exceptional wear resistancefor a long service life.

PART NAME	FINAL DRIVE GROUP (W/O Motor)
EQUIPMENT	APPLY FOR Excavator caterpillar 320D 323D 325C 325D 329D
STOCK CODE	9201905HQ
PART No.	267-6796 378-9567 227-6116 227-6115 191-2682 199-4575
FRAME HOLES	20
SPROCKET HOLES	18
CATEGORY	Construction Machinery Parts, Excavator Spare Parts
POSITION	TRAVEL MOTOR
APPLICATION	Replacement
ITEM CONDITION	NEW
LOGO	BN
MOQ	1 pc

DESCRIPTION:
1. Completely, assembly, and ready to installed in your Excavator caterpillar 320D 323D 325C 325D 329D.
2. Without MOTOR, already been installed the MOTOR SHAFT & MOTOR HOUSING.
3. All components are produced by us.
4. All new, undamaged.
5. Painted or Unpainted, depend on requirement
6. 90 days warranty, call or email with any questions.
7. Plywood Case Packing, free of fumigation
8. Deliver to worldwide by Sea, Air, or Carrier.

E325C 9201905HQ-1_副本LOGO

Company Profile

Why Choose Us

1. We are the manufacturer and own 18000 m2 factory areas, good relationship with

material suppliers, which make more competitive price and steady quality.

2. We have more than 80 units advanced facilities for production.

3. We have 8 senior engineers with more than 30 years experience on designing and

machining.

4. Our sales term offer the efficient service for every customers.

5. We are the long term parts supplier for many famous companies, such as FOSTER

WHEELER POWER MACHINERY CO.,LTD and C.R.Dinly etc.
6. We develop spare parts for old and new excavator models, and submit our latest products

to customers every month so that to meet the market demand.
7. We have high market share in Oversea market and Domestic market, Southeast Asia 65%,

Middle East 8%, North and South America 10%,Europe 8%, Russia 5%.

1. Warranty Type:
We will replace the product which have quality problem.
2. Warranty Period:
Supply 3 months warranty for the products from the date of arrival. Customer should check the items according to the order list
after arrival. Contact with us and offer the data, photos of the problem items.
3. You need to pay for the replacement charge for following condition:
* Wrong Order from customer.
* Natural Disasters cause the damage.
* Error installation.
* The machine and reducer work over time and over load.
* Lost by any condition.
* Human element destroyed.
* Corrode with rust during stock and running.
* Warranty Expired.
4. Others
They are the product easy to be rust away, please wrap them well. We just supply warranty for the products we are producing,
except the Bearing, Seal, and some others we mention before order.If there is any problem about the products, installation or
maintenance, please contact with us any time. We reserve the rights of final interpretation.

Packaging & Shipping

TRADE TERMS	EXW, FOB, CFR, CIF
PAYMENT TERMS	T/T, Western Union, Escrow
PORT	Jiangmen Port, negotiation
LEAD TIME	1. Stock in hand: 4-7 days for processing and packing 2. Bulk Production: 10-35 days, depend on the quantity.
DELIVERY	By Sea, Air, Carrier
ORDER FLOW	1. Customers offer the part number, part name, model, quantity, data of items, delivery term. 2. We quote the best price according to the requirement of customers. 3. Confirm the purchase order and pay the deposit. 4. We prepare and pack the goods. 5. Customers make the payment according to the Proforma Invoice once the goods get ready for delivery. 6. We delivery the goods with the packing list, commercial invoice, B/L and other documents requested. 7. Track the transport and arrival about the goods. 8. Welcome to give us suggestion and feedback once arrival.

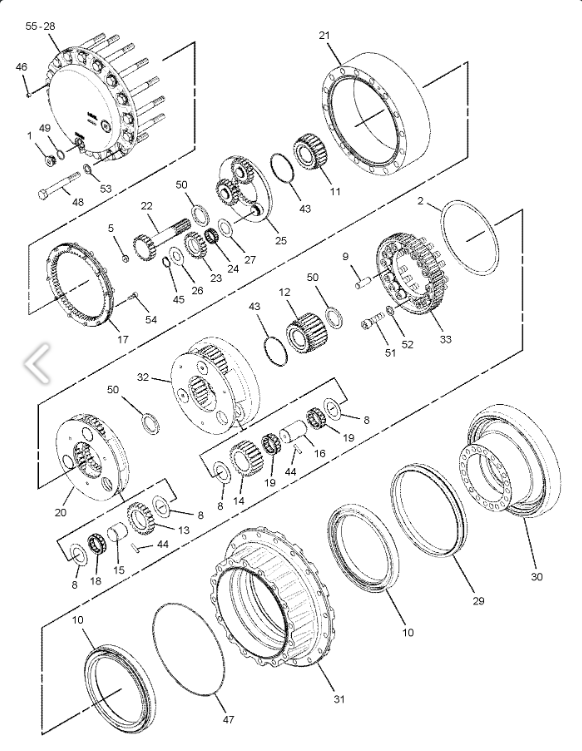

Inner parts

Pos.	Part No	Qty	Parts name
1.	3E-2338	[2]	PLUG-PIPE
2.	267-6863 BJ	[1]	SHIM (0.75-MM THK)
	7Y-0752 BJ	[1]	SHIM (0.8-MM THK)
	267-6864 BJ	[1]	SHIM (0.85-MM THK)
	267-6865 BJ	[1]	SHIM (0.9-MM THK)
	267-6866 BJ	[1]	SHIM (0.95-MM THK)
	7Y-0753 BJ	[1]	SHIM (1-MM THK)
	267-6867 BJ	[1]	SHIM (1.2-MM THK)
	267-6868 BJ	[1]	SHIM (1.4-MM THK)
	7Y-0754 BJ	[1]	SHIM (1.6-MM THK)
	267-6869 BJ	[1]	SHIM (1.8-MM THK)
	267-6870 BJ	[1]	SHIM (2-MM THK)
	267-6871 BJ	[1]	SHIM (2.3-MM THK)
5.	094-0578 B	[1]	PLATE (8-MM THK)
	094-0579 B	[1]	PLATE (9-MM THK)
	094-0580 B	[1]	PLATE (10-MM THK)
8.	094-1528	[12]	WASHER (53X84X1-MM THK)
9.	114-1540 J	[4]	PIN-DOWEL
10.	168-8452 J	[2]	BALL BEARING
11.	169-5589	[1]	GEAR-SUN (24-TEETH)
12.	169-5590	[1]	GEAR-SUN (24-TEETH)
13.	169-5592	[3]	GEAR-PLANETARY (23-TEETH)
14.	169-5593	[3]	GEAR-PLANETARY (23-TEETH)
15.	169-5601	[3]	SHAFT-PLANETARY
16.	169-5602	[3]	SHAFT-PLANETARY
17.	171-9387	[1]	GEAR-RING (64-TEETH)
18.	191-2569	[3]	BEARING AS (CAGED ROLLER)
19.	191-2570	[6]	BEARING AS (CAGED ROLLER)
20.	191-2571	[1]	CARRIER-PLANETARY
21.	191-2676	[1]	GEAR-RING (72-TEETH)
22.	191-2683	[1]	GEAR-SUN (20-TEETH)
23.	191-2684	[3]	GEAR-PLANETARY (21-TEETH)
24.	191-2685	[3]	BEARING AS
25.	191-2686	[1]	CARRIER AS
	191-2687	[3]	RACE-BEARING
26.	191-2689	[3]	WASHER (34X70X1-MM THK)
27.	191-2690	[3]	WASHER (42.3X70X1-MM THK)
28.	199-4503	[1]	COVER
29.	207-1571 J	[1]	SEAL GP-DUO-CONE
	214-3570	[2]	RING-TORIC
30.	267-6797 J	[1]	HOUSING-MOTOR
31.	267-6798 J	[1]	HOUSING
32.	267-6799	[1]	CARRIER-PLANETARY
33.	267-6800 J	[1]	GEAR-COUPLING
43.	093-1731	[2]	RING-RETAINING
44.	095-0891	[6]	PIN-SPRING
45.	096-0433	[3]	RING-RETAINING
46.	096-3216 M	[2]	SETSCREW-SOCKET (M12X1.75X12-MM)
47.	171-9298	[1]	SEAL-O-RING
48.	179-8733 M	[16]	BOLT (M20X2.5X170-MM)
49.	7M-8485	[2]	SEAL-O-RING
50.	7Y-0595	[3]	SPACER (58X79.6X6-MM THK)
51.	7Y-5217 JM	[16]	BOLT-SOCKET HEAD (M20X2.5X70-MM)
52.	8T-3282 J	[16]	WASHER-HARD (22X35X3.5-MM THK)
53.	8T-4123	[16]	WASHER (3.62X5.75X0.375-MM THK)
54.	9X-6032 M	[12]	BOLT-SOCKET HEAD (M10X1.5X30-MM)
55.	1U-8846 B		SEALANT-GASKET

			AVAILABLE REPAIR KIT(S):
	267-6818 J	[1]	KIT-FINAL DRIVE BEARING
	B		USE AS REQUIRED
	J		KIT MARKED J SERVICES PART(S) MARKED J
	M		METRIC PART
