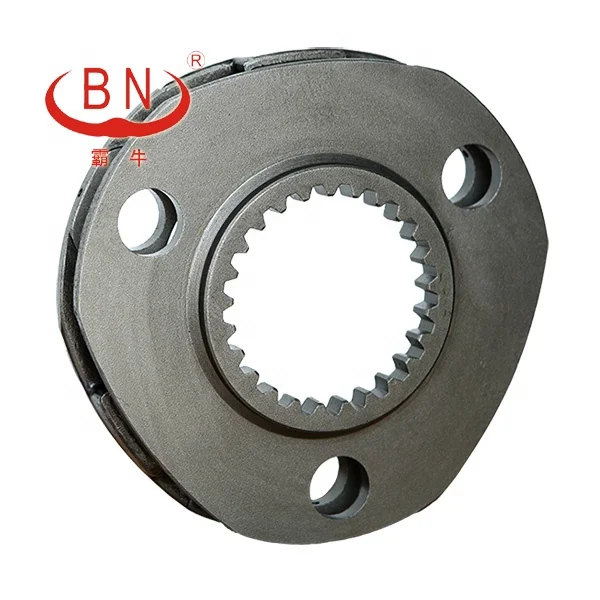

BN ZX200-3 ZX210 ZX200-3G ZX200-5G carrier 1st stage Construction Machinery Excavator Parts
Part name | carrier 1st stage |
Equipment | ZX200-3 ZX200-3G ZX200-5G excavator |
Engine number | - |
Part number | 2050691 |
Serial number | - |
Stock code | 0200660 |
Frame holes | - |
Sprocket holes | - |
Category | Construction machinery parts,excavator spare parts,excavator hydraulic parts |
Installation site | Travel reduction gear box,track gearbox,power transmission,powertrain,final drive |
Application | Replacement |
Item condition | New |
Logo | BN |
Minimum order quantity | NEGOCIATE |
Descriptions: |
1. Completely,assembly and ready to installed in your ZX200-3 ZX200-3G ZX200-5G excavators. |
2. Without motor and motor shaft,already been installed the motor housing . |
3. All components are produced by us. |
4. All new,undamaged. |
5. Painted or unpainted,depend on requirements. |
6. 90 days warranty,call or E-mail with any questions. |
7. Plywood case packing,free of fumigation. |
8. Deliver to worldwide by sea,air or carrier. |
Other Spare parts for your selection:
Pos. | Part No | Qty | Parts name |
9233692 | [1] | TRAVEL DEVICE | |
9261222 | [1] | TRAVEL DEVICE | |
1 | 9257254 | [1] | MOTOR;OIL |
1 | 9258325 | [1] | MOTOR;OIL |
2 | 4634693 | [1] | SEAL;GROUP |
3 | 4246793 | [2] | BRG.;ROL. |
4 | 1033090 | [1] | DRUM |
5 | 1033091 | [1] | SPROCKET |
6 | J932055 | [18] | BOLT |
7 | A590920 | [18] | WASHER;SPRING |
8 | 3086531 | [1] | NUT |
10 | 4436242 | [1] | PIN;KNOCK |
12 | 1025875 | [1] | CARRIER |
13 | 3084353 | [3] | GEAR;PLANETARY |
14 | 4438593 | [6] | BRG.;NEEDLE |
15 | 4284521 | [6] | PLATE;THRUST |
16 | 4116309 | [3] | PIN;SPRING |
17 | 4315838 | [3] | PIN |
18 | 3082156 | [1] | GEAR;SUN |
20 | 1025787 | [1] | GEAR;RING |
21 | J931640 | [24] | BOLT |
23 | 2042432 | [1] | CARRIER |
24 | 4401293 | [2] | SPACER |
25 | 3082155 | [3] | GEAR;PLANETARY |
26 | 4438592 | [3] | BRG.;NEEDLE |
27 | 4192982 | [6] | PLATE;THRUST |
28 | 4402086 | [3] | PIN |
29 | 4192020 | [3] | PIN;SPRING |
30 | 3082149 | [1] | GEAR;SUN |
32 | 2050691 | [1] | CARRIER |
33 | 3100544 | [3] | GEAR;PLANETARY |
34 | 4406589 | [3] | BRG.;NEEDLE |
35 | 4192910 | [6] | PLATE;THRUST |
36 | 4210853 | [3] | PIN |
37 | 4173093 | [3] | PIN;SPRING |
38 | 2050692 | [1] | SHAFT;PROP. |
40 | 2034833 | [1] | COVER |
41 | 4478346 | [1] | PIN;STOPPER |
42 | 4699148 | [12] | BOLT;SEMS |
43 | 4245797 | [3] | PLUG |
46 | +++++++ | [1] | NAME-PLATE |
47 | M492564 | [2] | SCREW;DRIVE |
1. Warranty Type:
We will replace the product which have quality problem.
2. Warranty Period:
Supply 3 months warranty for the products from the date of arrival. Customer should check the items according to the order list after arrival. Contact with us and offer the data, photos of the problem items.
3. You need to pay for the replacement charge for following condition:
* Wrong Order from customer.
* Natural Disasters cause the damage.
* Error installation.
* The machine and reducer work over time and over load.
* Lost by any condition.
* Human element destroyed.
* Corrode with rust during stock and running.
* Warranty Expired.
4. Others
They are the product easy to be rust away, please wrap them well. We just supply warranty for the products we are producing, except the Bearing, Seal, and some others we mention before order.If there is any problem about the products, installation or maintenance, please contact with us any time. We reserve the rights of final interpretation.
TRADE TERMS | EXW, FOB, CFR, CIF |
PAYMENT TERMS | T/T, Western Union, Escrow |
PORT | Jiangmen Port, negotiation |
LEAD TIME |
|
DELIVERY | By Sea, Air, Carrier |
ORDER FLOW |
|
