EX220-5
BN
9148930 9134826 9091682
| PART NAME | BN 9148930 9134826 9091682 EX220-5 Excavator Tr avel Gearbox DRIVE GP-FINAL Hitachi parts |
| EQUIPMENT | EX220-5 |
| CATEGORY | Construction Machinery Parts, Excavator Spare Parts |
| POSITION | crawler excavator |
| APPLICATION | Replacement |
| ITEM CONDITION | NEW |
| LOGO | BN |
| MOQ | 1 pc |

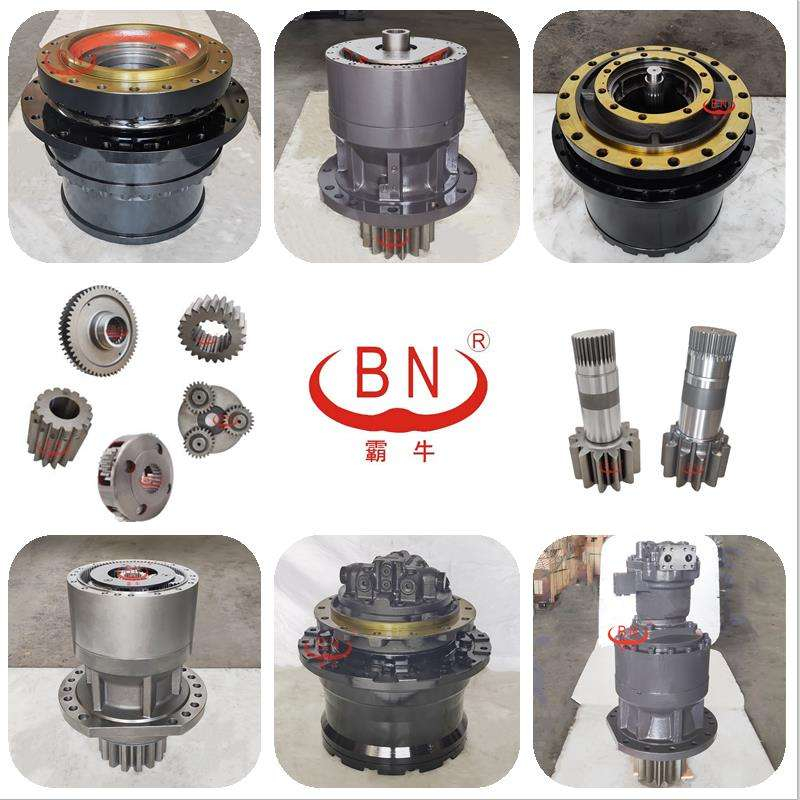

Hitachi EX220-5 Excavator Travel Gearbox Final Drive | Part No. 9148930 9134826 9091682
Whether you are operating in mining, construction, or demolition, this travel gearbox ensures your excavator moves efficiently and reliably.
Perfect OEM Fit: Directly replaces factory part number 9148930 9134826 9091682
Heavy-Duty Construction: Forged from high-strength alloy steel to withstand extreme shock loads and prevent gear stripping.
Longer Service Life: Precision-engineered planetary gears and advanced floating seal groups prevent oil leaks and keep dirt/water out.
Plug-and-Play Installation: Standard bolt-hole configurations match your original track motor and crawler frame perfectly.
Product Name: Travel Gearbox Assembly / Final Drive GP
Part Number: 9148930 9134826 9091682
Condition: 100% Brand New Aftermarket / OEM Replacement
Material: High-Density Cast & Forged Steel
Application Type: Crawler Excavator Undercarriage Drive
Compatible Hitachi Models
EX Series: EX220-5 / EX220-3 / EX230-5 / EX225-5
| Pos. | Part No | Qty | Parts Name |
|---|---|---|---|
| -9148910 | [2] | TRAVEL DEVICE ASS'Y (for transportation) | |
| 9134826 | [2] | TRAVEL DEVICE ASS'Y | |
| 0 | -9149087 | [1] | MOTOR; OIL (for transportation) |
| 0 | 9146471 | [1] | MOTOR; OIL (for assembly of machine) |
| 2 | 4114753 | [1] | SEAL; GROUP |
| 3 | 4246793 | [2] | BRG.; ROL. |
| 4 | 1013983 | [1] | DRUM |
| 5 | 1010203 | [1] | SPROCKET |
| 5 | 1021239 | [1] | SPROCKET |
| 6 | J932055 | [16] | BOLT |
| 7 | 3047448 | [1] | HUB |
| 9 | 4246783 | [1] | PIN; KNOCK |
| 10 | A590920 | [16] | WASHER; SPRING |
| 11 | 1014493 | [1] | GEAR; RING |
| 12 | J931660 | [20] | BOLT |
| 13 | 4246792 | [1] | O-RING |
| 14 | 1014491 | [1] | CARRIER |
| 15 | 3052346 | [3] | GEAR; PLANETARY |
| 16 | 4172394 | [6] | BRG.; NEEDLE |
| 17 | 4252442 | [3] | PIN |
| 18 | 4116309 | [3] | PIN; SPRING |
| 19 | 3049870 | [1] | GEAR; SUN |
| 20 | 4271698 | [6] | PLATE; THRUST |
| 21 | 1014492 | [1] | CARRIER |
| 22 | 4246785 | [1] | SPACER |
| 23 | 3052345 | [3] | GEAR; PLANETARY |
| 24 | 4354271 | [3] | BRG.; NEEDLE |
| 25 | 4252441 | [3] | PIN |
| 26 | 4197763 | [3] | PIN; SPRING |
| 27 | 3049872 | [1] | GEAR; SUN |
| 28 | 4269295 | [6] | PLATE; THRUST |
| 29 | 1014490 | [1] | CARRIER |
| 30 | 4192979 | [1] | SPACER |
| 31 | 3049873 | [3] | GEAR; PLANETARY |
| 33 | 4210853 | [3] | PIN |
| 35 | 2028764 | [1] | SHAFT; PROP. |
| 37 | 2028763 | [1] | COVER |
| 38 | 4210849 | [3] | BRG.; NEEDLE |
| 39 | J011230 | [16] | BOLT; SEMS |
| 41 | 4245797 | [3] | PLUG |
| 43 | M492564 | [2] | SCREW; DRIVE |
| 44 | 3053559 | [1] | NAME-PLATE |
| 46 | 3057125 | [1] | NUT |
| 47 | 4192910 | [6] | PLATE; THRUST |
| 48 | 4173093 | [3] | PIN; SPRING |
| 49 | 4285323 | [1] | PIN; STOPPER |
Travel Gearbox DRIVE
GP-FINAL
