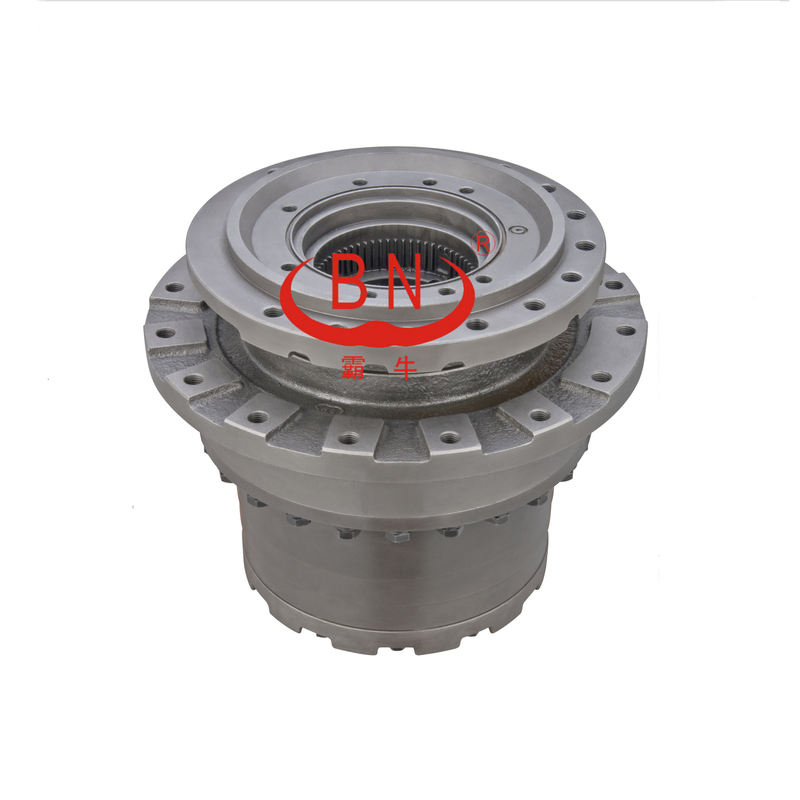

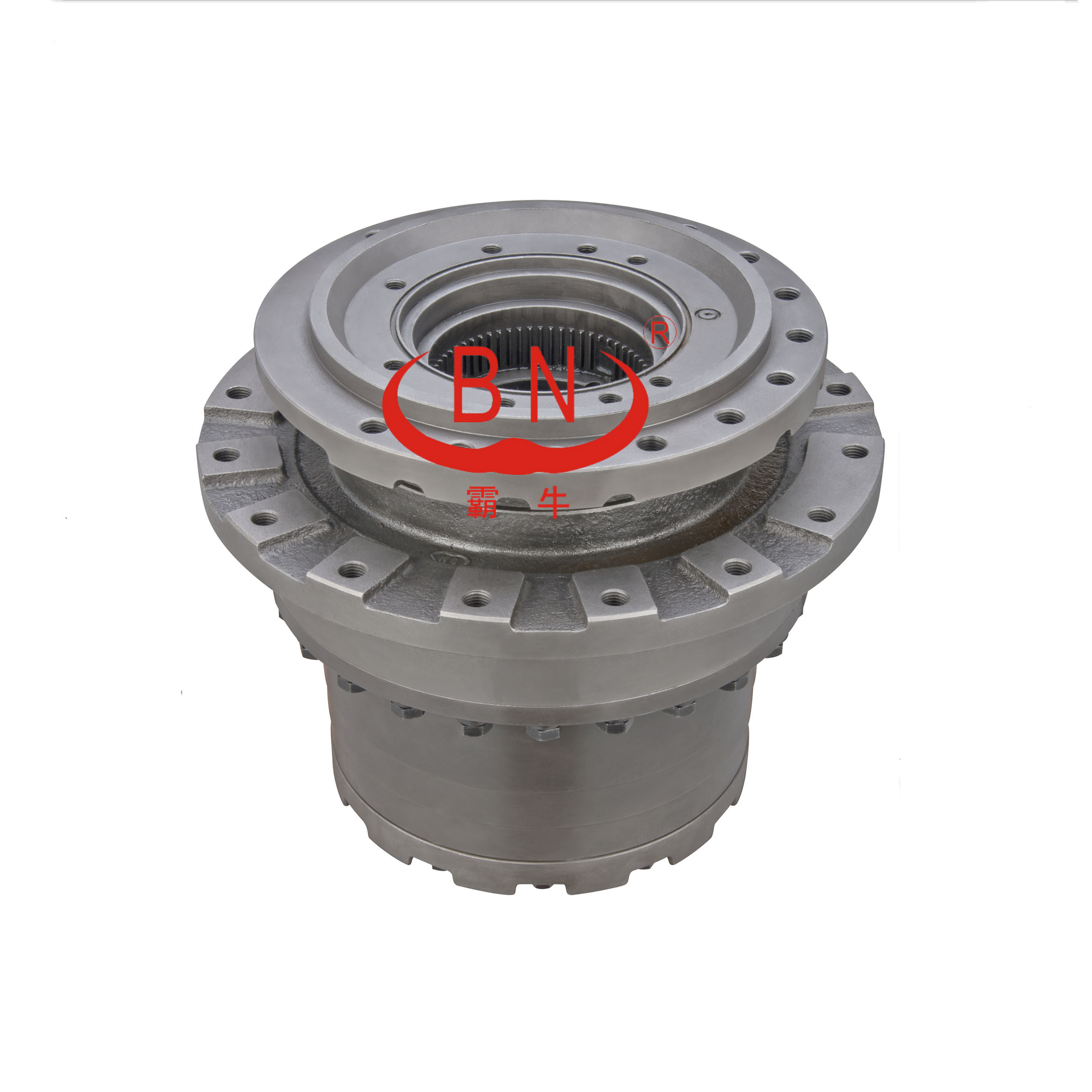

BN 9155253 EX200-5 EX200-3 Excavator Travel Gearbox DRIVE GP-FINAL Hitachi parts
Brand: apply to Hitachi
Part No: 9155253
Part Name: TRAVEL MACHINERY GEARBOX
Unit: TRAVEL MOTOR & TRAVEL REDUCTION GEAR, COMPONENTS
Part No: 9155253
Part Name: TRAVEL MACHINERY GEARBOX
Unit: TRAVEL MOTOR & TRAVEL REDUCTION GEAR, COMPONENTS
Catergory: Construction Machinery Parts, Excavator Spare Parts
Item Condition: New
Item Condition: New
Quality Standard: Aftermarket
Logo: BN
HONGXIANG MACHINERY CO., LTD. supplies the BN-brand swing machinery gearbox 9155253, the aftermarket replacement for Hitachi EX200-5 EX200-3 Cexcavators. Built with precision gears and high-strength housings, it restores smooth, powerful slewing performance.
-
EX200-5 EX200-3
-
BN
-
9155253
Product Description
BN 9155253 EX200-5 EX200-3 Excavator Travel Gearbox DRIVE GP-FINAL Hitachi parts
| PART NAME | BN 9155253 EX200-5 EX2 00-3 Excavator Tr avel Gearbox DRIVE GP-FINAL Hitachi parts |
| EQUIPMENT | EX200-5 EX200-3 |
| CATEGORY | Construction Machinery Parts, Excavator Spare Parts |
| POSITION | crawler excavator |
| APPLICATION | Replacement |
| ITEM CONDITION | NEW |
| LOGO | BN |
| MOQ | 1 pc |
Hitachi EX200-5 EX200-3 Excavator Travel Gearbox Final Drive | Part No. 9155253
Product Overview
Upgrade or repair your heavy equipment with this heavy-duty Travel Gearbox Final Drive (Part No. 9155253). Engineered specifically for Hitachi EX200-3 and EX200-5 series excavators, this premium quality final drive group delivers high torque, maximum durability, and smooth undercarriage performance under the toughest working conditions.
Whether you are operating in mining, construction, or demolition, this travel gearbox ensures your excavator moves efficiently and reliably.
Key Features & Benefits
Perfect OEM Fit: Directly replaces factory part number 9155253 (interchangeable with 9150472, 9149087) with zero modifications required.
Heavy-Duty Construction: Forged from high-strength alloy steel to withstand extreme shock loads and prevent gear stripping.
Longer Service Life: Precision-engineered planetary gears and advanced floating seal groups prevent oil leaks and keep dirt/water out.
Plug-and-Play Installation: Standard bolt-hole configurations match your original track motor and crawler frame perfectly.
Specifications & Compatibility
⚙️ Technical Specifications
Product Name: Travel Gearbox Assembly / Final Drive GP
Part Number: 9155253
Condition: 100% Brand New Aftermarket / OEM Replacement
Material: High-Density Cast & Forged Steel
Application Type: Crawler Excavator Undercarriage Drive
Compatible Hitachi Models
This final drive assembly fits the following mid-sized Hitachi excavators:
EX Series: EX200-3, EX200-3E, EX200-5, EX200LC-5, EX210H-5, EX210K-5, EX220-5, EX230-5, EX230LC-5
Technical Drawing
Compatible Equipment Models
CHR70, EX200-5, EX200-5 JPN, EX200-5HG, EX200-5HHE, EX200-5LV JAP, EX200-5X JPN, EX200-5Z JPN, EX200LC-5HHE, EX200SS-5, EX210H-5, EX210H-5 JPN, EX210K-5 JPN, EX210LC-5HHE, Hitachi
Travel Device Parts List
| Position | Part No | Quantity | Parts Name | Comments |
|---|---|---|---|---|
| 9150472 | [2] | TRAVEL DEVICE ASS'Y | I 9155253 (for assembly of machine) | |
| -9155253 | [2] | TRAVEL DEVICE ASS'Y | (for transportation) | |
| 0 | 9146471 | [1] | MOTOR;OIL | I 9149087 (for assembly of machine) |
| 0 | -9149087 | [1] | MOTOR;OIL | (for transportation) |
| 2 | 4114753 | [1] | SEAL;GROUP | |
| 3 | 4246793 | [2] | BRG.;ROL. | |
| 4 | 1018736 | [1] | DRUM | |
| 5 | 1018740 | [1] | SPROCKET | |
| 6 | J932055 | [16] | BOLT | |
| 7 | A590920 | [16] | WASHER;SPRING | |
| 8 | 3047448 | [1] | HUB | |
| 9 | 3057125 | [1] | NUT | |
| 10 | 4246783 | [1] | PIN;KNOCK | |
| 12 | 1019147 | [1] | CARRIER | |
| 13 | 3063957 | [3] | GEAR;PLANETARY | |
| 14 | 4317122 | [6] | BRG.;NEEDLE | |
| 15 | 4284521 | [6] | PLATE;THRUST | |
| 16 | 4315838 | [3] | PIN | |
| 17 | 4116309 | [3] | PIN;SPRING | |
| 18 | 3063959 | [1] | GEAR;SUN | |
| 20 | 1020184 | [1] | GEAR;RING | |
| 21 | J931640 | [24] | BOLT | |
| 23 | 2034836 | [1] | CARRIER | |
| 24 | 4192979 | [2] | SPACER | |
| 25 | 3063956 | [3] | GEAR;PLANETARY | |
| 26 | 4317121 | [3] | BRG.;NEEDLE | |
| 27 | 4210851 | [6] | PLATE;THRUST | |
| 28 | 4309995 | [3] | PIN | |
| 29 | 4192020 | [3] | PIN;SPRING | |
| 30 | 3063958 | [1] | GEAR;SUN | |
| 32 | 2034835 | [1] | CARRIER | |
| 33 | 3063955 | [3] | GEAR;PLANETARY | |
| 34 | 4210849 | [3] | BRG.;NEEDLE | |
| 35 | 4192910 | [6] | PLATE;THRUST | |
| 36 | 4210853 | [3] | PIN | |
| 37 | 4173093 | [3] | PIN;SPRING | |
| 38 | 2034834 | [1] | SHAFT;PROP. | |
| 40 | 2034833 | [1] | COVER | |
| 41 | 4285323 | [1] | PIN;STOPPER | |
| 42 | J011230 | [12] | BOLT;SEMS | |
| 43 | 4245797 | [3] | PLUG | |
| 47 | M492564 | [2] | SCREW;DRIVE |
